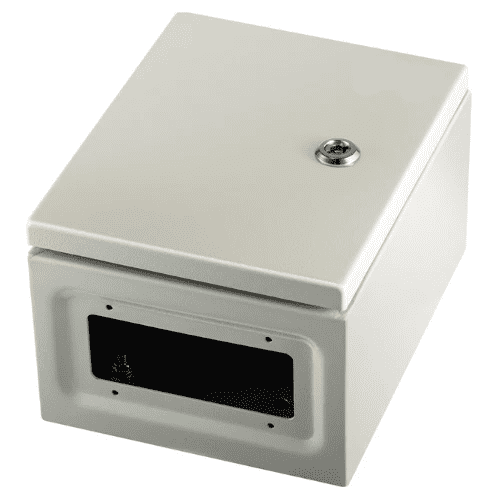

NEMA 4X Carbon Steel Enclosure 10 x 8 x 6'' Electrical Junction Box

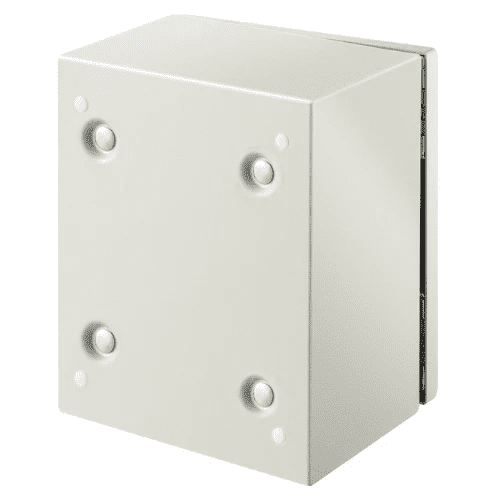

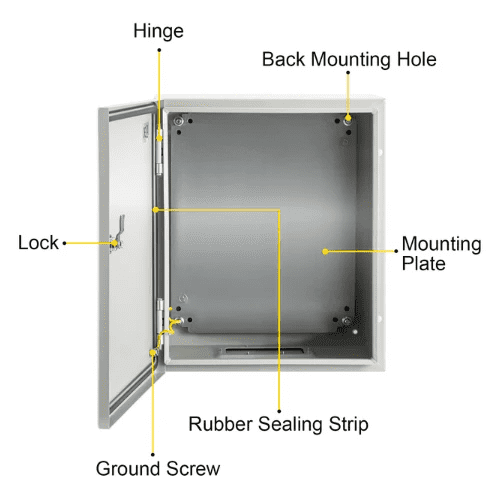

Rugged Steel Construction Built from 1.5 mm cold-rolled steel with precision cutting and welding, this electrical enclosure offers superior durability and wear resistance. Certified with CE and ROHS, it provides reliable protection for your equipment in harsh environments. IP66 Waterproof & Dustproof Designed for outdoor and industrial use, the foam plastic sealing strip ensures excellent sealing performance, achieving an IP66 rating. It effectively blocks dust and water—even when the lid is open. Reinforced Lock & Hinge Design The high-strength hinged cover and premium lock core enhance security and durability, preventing damage from pressure or impact and ensuring secure closure. Easy Installation & Mounting Includes a detachable galvanized mounting plate for simple installation of electrical components. Four pre-drilled mounting holes on the back allow fast, secure wall mounting. Detail-Oriented Design The enclosure features a bottom cutout for smooth cable threading, pre-installed grounding screws, and rounded edges to prevent cable wear or damage. Package Contents : 1 x Electrical Box 2 x Keys 1 x Mounting Plate (pre-assembled in the box) 1 x Set of Wall-Mounting Pendants 1 x Bottom Sealing Plate

• ‌Material: 1.5 mm Carbon Steel
• Coating: Epoxy Polyester Powder Coating
• Mounting Plate: 2 mm Detachable Galvanized Backplate
• Connection Type: Hinged
• Features: Lockable, Waterproof
• Galvanized Backplate Dimensions: 7.9" x 6" (200 x 152 mm)
• Dimensions (H x W x D):
• Outer: 10" x 8" x 6" (254 x 203 x 152 mm)
• Inner: 9.7" x 7.8" x 4.6" (246 x 198 x 117 mm)
• Color: Gray White
• Weight: 9.48 lbs / 4.3 kg
• Certification: CE / RoHS
